Multi-information display

Display and menu icons

■ Display

1. Driving support system status display area

In the Subaru Solterra, this area dynamically presents visual information whenever advanced driver assistance systems are active and a menu icon other than is selected:

• LDA (Lane Departure Alert)
• LTA (Lane Tracing Assist)
• LCA (Lane Change Assist)
• RSA (Road Sign Assist)
• Dynamic radar cruise control
• Cruise control
• PDA (Proactive driving assist)

2. Content display area

The multi-information display in the Subaru Solterra allows the driver to access a wide range of real-time driving data by selecting different menu icons. It also serves as a central interface for adjusting display preferences and configuring various vehicle settings.

Depending on operating conditions, warning alerts or advisory pop-up messages may also appear to ensure the driver is informed about the Subaru Solterra status.

■ Menu icons

The menu icons are displayed by operating the meter control switches on the Subaru Solterra.

Driving information display

Driving support system information display

Audio system-linked display

Vehicle information display

Settings display

Warning message display

■ Liquid crystal display

As with many LCD panels, the Subaru Solterra display may show small bright or dark spots. This is a normal characteristic of liquid crystal technology and does not affect functionality or usability.

WARNING

■ Caution for use while driving

• When interacting with the multi-information display in the Subaru Solterra while driving, always remain attentive to road conditions and surrounding traffic.

• Avoid prolonged viewing of the display, as this may reduce awareness of pedestrians, obstacles, or changes in traffic ahead.

Changing the meter display

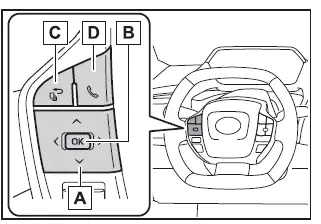

The multi-information display of the Subaru Solterra is controlled using the meter control switches located on the steering wheel.

1. : Select menu icons, scroll through screens, and move the cursor
   : Change displayed content, scroll screens, and adjust selections
2. Press: Enter/Set
   Press and hold: Reset or access customizable display options
3. Return to the previous screen
4. Call sending/receiving and call history display

When connected to the hands-free system, call-related information such as incoming, outgoing, or missed calls will be shown directly on the Subaru Solterra display.

For detailed instructions regarding the hands-free system, refer to the multimedia owner's manual.

Content of driving information

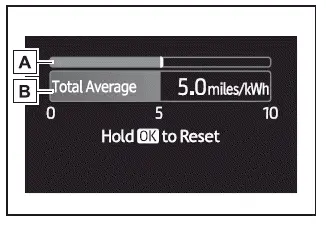

■ Power consumption

The values shown in the Subaru Solterra should be used as a reference to help improve driving efficiency and energy management.

1. Current power consumption
   Displays real-time energy usage of the Subaru Solterra.
2. Trip Average/Total Average
   To reset the average consumption data, press and hold the corresponding meter control switch.

The average power consumption view can be changed through settings.

• Trip Average
  Displays average energy consumption since the EV system was last started.
• Total Average
  Displays long-term average consumption since the last reset of the Subaru Solterra system.

■ Power consumption

In the Subaru Solterra, power consumption is expressed as a numerical value representing energy efficiency, similar to fuel economy in traditional vehicles. It shows how many miles can be traveled per kilowatt-hour (miles/kWh), providing a clear indication of driving efficiency and helping drivers optimize their driving habits for maximum range.
