Gauges and meters

In the Subaru Solterra, the gauges and meters are designed to provide the driver with clear, real-time driving information, helping to maintain awareness of vehicle performance, battery condition, and overall system status during every journey.

Meter display

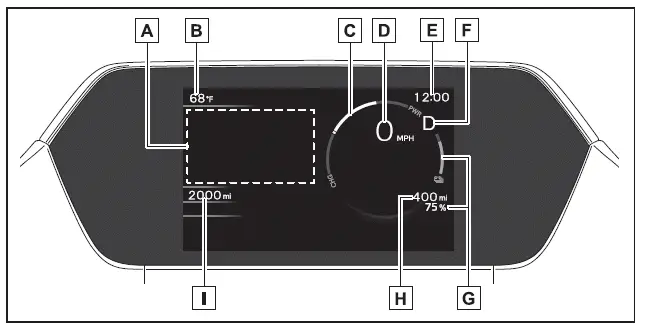

■ Locations of gauges and meters

The measurement units and display configuration in the Subaru Solterra may vary depending on the destination market and regional specifications.

1. Multi-information display
   In the Subaru Solterra, this central display provides a wide range of vehicle data, including driving information and system status.
   It also shows warning messages whenever a malfunction or alert condition is detected.
   The visibility of the multi-information display can be customized according to driver preference.
2. Outside temperature
   Displays ambient temperature within a range of -40ºF (-40ºC) to 140ºF (60ºC), helping drivers of the Subaru Solterra anticipate road and weather conditions.
3. Power meter
   Indicates the EV system output level or regenerative braking intensity in the Subaru Solterra.
4. Speedometer
   Displays the current vehicle speed clearly and accurately.
5. Clock
   Also integrates shift position information and regenerative braking indicators depending on system mode.
6. SOC (State of Charge) gauge
   Shows the remaining charge level of the traction battery in the Subaru Solterra.
7. Driving range
   Displays the estimated remaining driving distance based on current battery charge.
   When the climate control system is active, and the adjusted driving range with air conditioning usage are shown, allowing more accurate planning.
8. Odometer and trip meter display

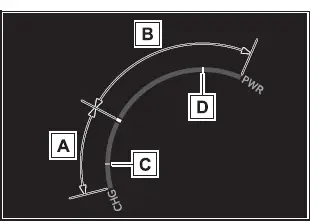

■ Power meter

1. Charge area
   Indicates regenerative braking status*1 in the Subaru Solterra.
   Recovered energy is redirected to recharge the traction battery, improving efficiency.
2. Power area
   Displays the output of the electric drive system, reflecting acceleration demand while driving.
3. Regeneration*1 restrictions reference display*2

Under certain conditions in the Subaru Solterra, regenerative braking may be limited. When this occurs, the system will display reference indicators within the charge area.

• When the traction battery is nearly full and cannot accept additional regenerated energy
• When the traction battery temperature is excessively high or low

4. Output restrictions reference display* 2

In specific situations, the Subaru Solterra may also restrict power output, and corresponding indicators will appear in the power area.

• When the traction battery charge is too low to deliver full power
• When the traction battery temperature is outside optimal operating limits

*1: In the Subaru Solterra, “regeneration” refers to converting kinetic energy into electrical energy to recharge the battery.
*2: Actual restriction levels may vary depending on driving conditions and battery status.

■ Outside temperature display

• In the Subaru Solterra, the outside temperature reading may not immediately reflect actual conditions in the following cases:
  • When the vehicle is stationary or moving at low speeds (below 16 mph [25 km/h])
  • When there is a sudden temperature change, such as entering or exiting a garage or tunnel
• If “--” is displayed, the system may be experiencing a malfunction. Have the Subaru Solterra inspected by a qualified dealer.
• When the outside temperature drops to approximately 37ºF (3ºC) or lower, the indicator will flash briefly and then remain illuminated to alert the driver.

■ Customization

The Subaru Solterra allows customization of gauges and meter displays via within the multi-information display interface.

WARNING

■ The information display at low temperatures

Before operating the Subaru Solterra in extremely cold conditions, allow the interior to warm up. The liquid crystal display may respond slowly, and transitions between displayed values may be delayed.

For example, a delay between gear selection and the display of regenerative braking may cause the driver to apply additional input unintentionally, potentially leading to excessive braking force and increasing the risk of an accident.

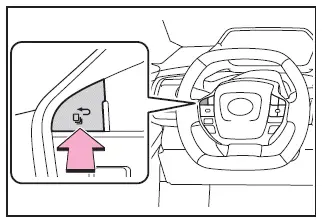

Switching the meter display

The multi-information display in the Subaru Solterra can be toggled between visible and hidden modes as needed.

Odometer and trip meter display

■ Display items

• Odometer
  Shows the total distance traveled by the Subaru Solterra throughout its lifetime.
• Trip meter A/Trip meter B
  Tracks distance driven since the last reset, allowing independent monitoring of multiple trips.

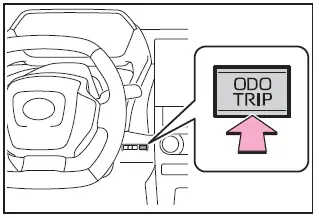

■ Switching the display

Each press of the control switch cycles through the available displays. Holding the switch while viewing the trip meter will reset the distance value to zero in the Subaru Solterra.

Adjusting the clock

The clock settings in the Subaru Solterra can be configured via the multimedia system interface.

• Multi-information display
• Audio system screen

For additional details, refer to the multimedia system manual.

If is displayed when is selected, the system may require inspection.

Have the Subaru Solterra checked by an authorized SUBARU dealer.

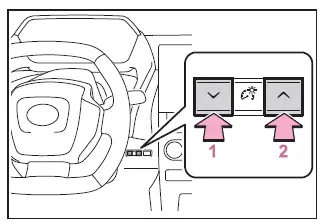

Adjusting the instrument panel light control

The brightness of the instrument panel lighting in the Subaru Solterra can be adjusted to match ambient lighting conditions.

1. Darker
2. Brighter

■ Instrument panel illumination adjustment

The illumination level can be fine-tuned for optimal visibility in both daytime and nighttime driving conditions, enhancing comfort and safety in the Subaru Solterra.
